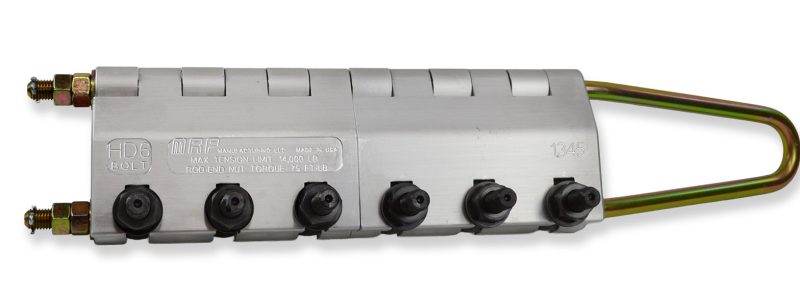

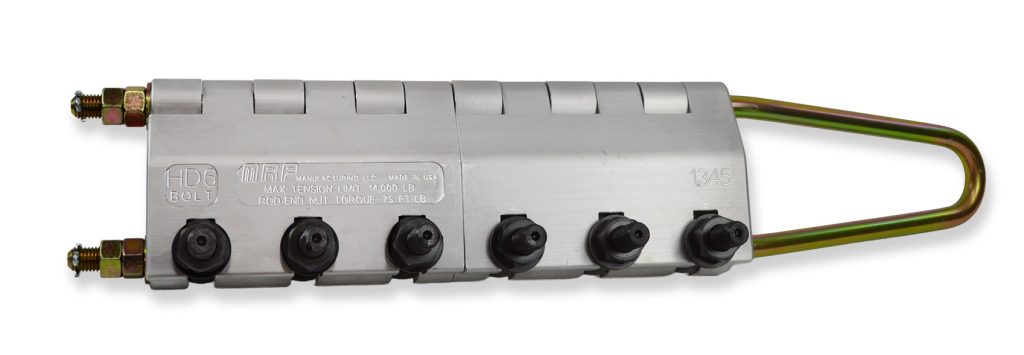

Heavy Duty 6 Bolt Pocketbook Comealong Grips for the pulling of wire up to an initial sag-tension; self-contained unit no loose parts. Our clamps are modeled from industry standard. Clamp down bolts are peened so when opened for installation, flange nuts will not be lost.
This is a HD 6-bolt grip with a higher tension limit than our regular 6-bolt grips, but lower weight than the 9-bolt grip.
Grips are custom milled to conductor diameter.
Orders typically ship in 1-4 days.
Features:
Length: 29″ overall
Weight: 36lbs.
Maximum tension limit: 14,000 lbs or 50% of the rated strength of the conductor, whichever is smaller
Size Range: .875” – 2.500” diameter
Body: Extruded aluminum
Bolt size: 3/4” steel
Bail: 3/4” steel, trivalent zinc chromate finish
Torque: 67 ft-lb
Tool marking: Rating, torque and diameter clearly marked on tool
Regular Price: contact us for a quote
