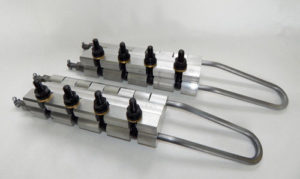

Pocketbook Grip 4 Bolt

4 Bolt Pocketbook Comealong Grips for the pulling of wire up to an initial sag-tension; self-contained unit – no loose parts. Our grips are modeled from industry standard. Clamp down bolts are peened so when opened for installation, flange nuts will not be lost.

Grips are custom milled to conductor diameter.

Orders typically ship in 1-4 days.

Features:

Length:  21 ¼” overall

Weight:  10.5 lbs.

Maximum tension limit: 5,000 lbs or 50% of the rated strength of the conductor, whichever is smaller

Size Range:  .360” – .875” diameter

Bolt size:  1/2” steel

Bail:  1/2” steel, trivalent zinc chromate finish

Torque:  40 ft-lb

Tool marking: Rating, torque and diameter clearly marked on tool

Regular Price: $592

4-bolt-orig-white-sm800300
  • Request a Quote

  • Customer Information

  • This field is for validation purposes and should be left unchanged.

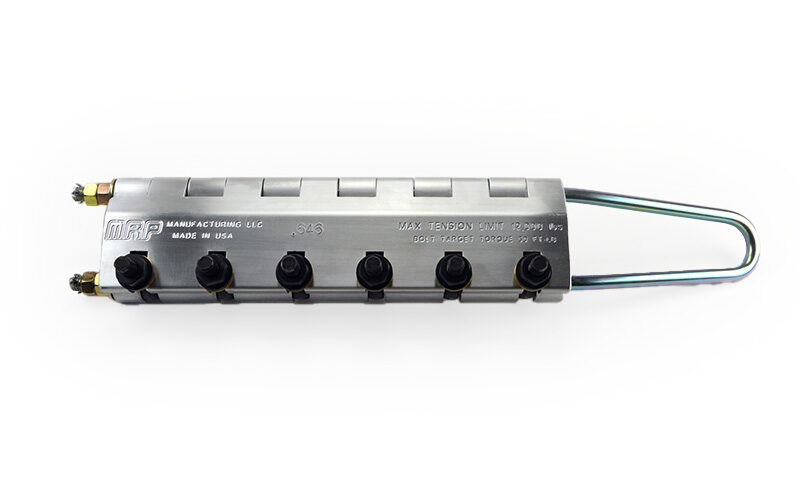

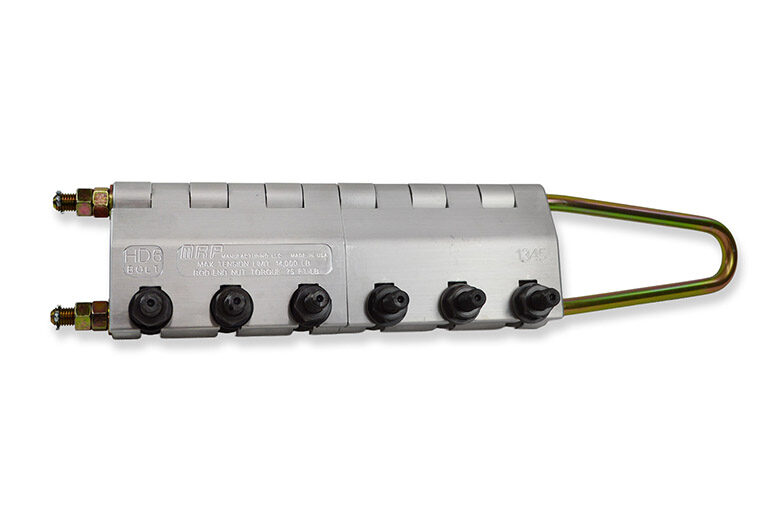

6 Bolt Pocketbook Grips

9 Bolt Pocketbook Grips

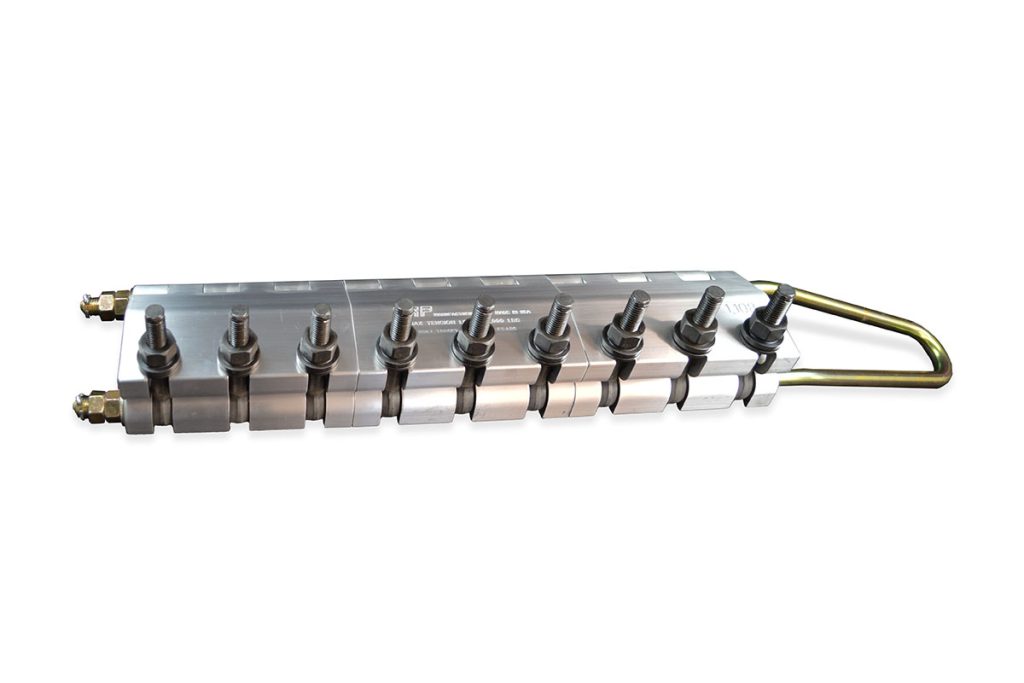

9-bolt Pocketbook Grip
