Posted on

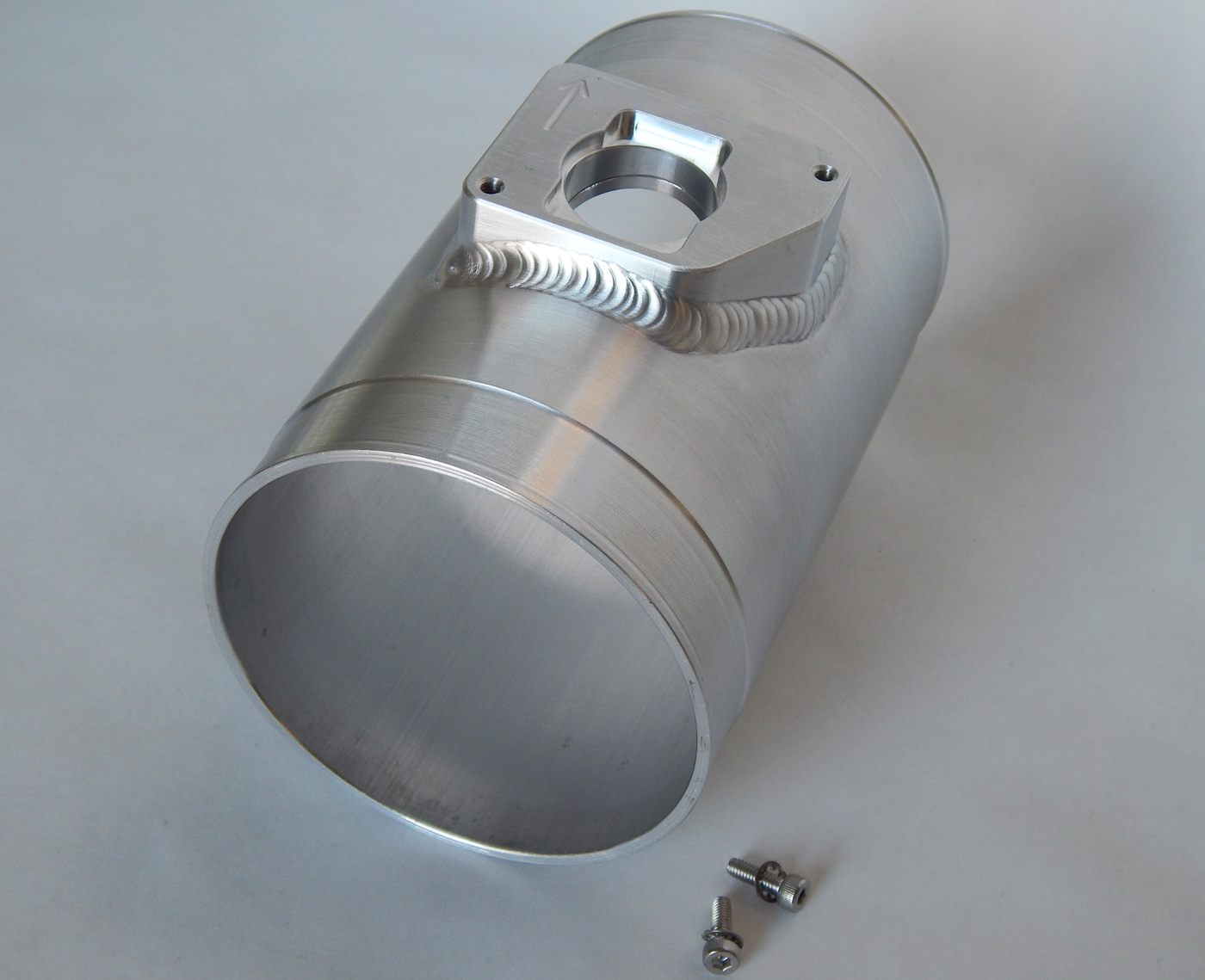

MAF housing & weld on flange for Ford Mustang Cobra F150 Lightening

This family of products is designed to fit Mass Air Flow sensors: 1L3F-12B579-AB/ AFH90-02 and 1L3Z-12B579-AB. Housings feature a beautifully-crafted sensor flange for clean lines with precision TIG welds. Our undercut ends give your silicon hose connection a cleaner transition; more room for your clamps and a tight fit. Use on your cold-air intake, turbo or supercharger project. For use with your OEM sensor! Continue reading MAF housing & weld on flange for Ford Mustang Cobra F150 Lightening

Posted on

MAF Housing for Audi VW – Allroad, A4 and more

Mass Air Flow Housing Audi VW Allroad

Our latest MAF Housing was created after repeated customer requests with the Audi Allroad in mind. Size availability includes:

  • 3.5” (90mm) OD/3.25″ (83mm) ID x 6”(152.40mm) length
  • 4.0” (102mm) OD/3.75″ (95mm) ID x 6”(152.40mm) length
  • 3.5” (90mm) OD/3.25″ (83mm) ID x 10” length

All are offered standard or with a honeycomb air straightener. Let us know if you need a different size and we’ll be happy to expand our selection. Continue reading MAF Housing for Audi VW – Allroad, A4 and more

Posted on

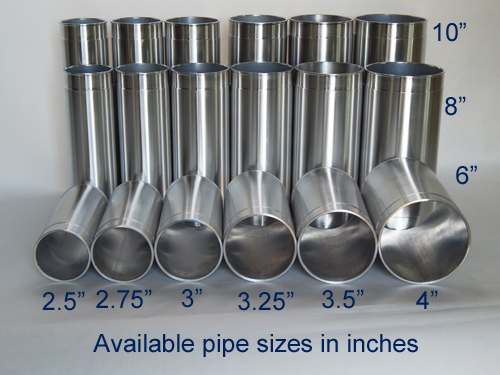

Universal Straight aluminum pipe with undercut ends for intercooler or intakes with 1/8” wall

Straight aluminum pipe features precision machined undercut ends to facilitate tight clamping for your silicon hose connections. Universal pipe perfect for air intake, turbo, intercoolers or other projects that would benefit from undercut ends. Features:

  • 1/8 inch (3mm) wall thickness
  • 6061 extruded aluminum with hand-buffed finish
  • Suitable for welding
  • All machining done in house

Available lengths: 6” (152mm), 8” (203mm) or 10” (254mm) Continue reading Universal Straight aluminum pipe with undercut ends for intercooler or intakes with 1/8” wall

Posted on

Cadillac GM MAF Upgrade Housing for GM# 10393948/Delphi # AF10060 & Delphi AF 10055 sensors

1-3.5-Cad-GM-MAF-w-hardwareHot off the design table, this new line of mass air flow upgrade housings was created at customer request. Created with the Cadillac CTS in mind, these housings also fit Escalade, Silverado, Avalanche, Tahoe, Sierra & Yukon as well as many older model GM’s when retrofitted with the redesigned Delphi AF 10055 sensor. This MAF is 6”(152.40mm) long and available in 2.75” (70mm), 3.0″ (76.2mm), 3.25″ (82.55mm), 3.5″ (88.9mm) and 4.0″ (101.6mm) diameters.

Use on your cold-air intake, turbo or supercharger project. All diameters are precision welded to a straight pipe with machined undercut ends for a tight fit; air straightener is optional. Or, you can purchase the weld-on bung separately and weld to your own custom pipe Continue reading Cadillac GM MAF Upgrade Housing for GM# 10393948/Delphi # AF10060 & Delphi AF 10055 sensors

Posted on

Upgrade your Mitsubishi MAF Housing to billet aluminum: EVO, Eclipse, Lancer, Outlander, Galant, Endeavor

Mitsubishi MAF products
Mitsubishi MAF products

Upgrade your Mitsubishi Mass Air Flow housing with these hand-buffed billet aluminum beauties. This Mitsubishi design fits Mitsubishi sensor # MR 985187/Cardone # 74-50046/UPC# 00082617741293. It is available in 2.50″ (63.5mm), 2.75” (70mm), 3.0″ (76.2mm), 3.25″ (82.55mm), 3.5″ (88.9mm) and 4.0″ (101.6mm) diameters. Use on your cold-air intake, turbo or supercharger project. All diameters are also available with an air straightener or you can purchase the weld-on bung separately and weld to your pipe.

  • Precision machined from Billet Aluminum 6061-T6 featuring a beautifully-crafted sensor mount for clean lines with precision TIG welds.
  • Our undercut ends gives your silicon hose connection a cleaner transition; more room for your clamps and a tight fit.
  • Hand-buffed & hand inspected for consistent high quality.
  • Stainless steel hardware for mounting is included.
  • 100% of our machining, welding and assembly is done locally by people we know and trust.
  • Air straighteners are aluminum honeycomb open cell and seated and fastened in a precision machined recess on the inlet side for a secure position.

Continue reading Upgrade your Mitsubishi MAF Housing to billet aluminum: EVO, Eclipse, Lancer, Outlander, Galant, Endeavor

Posted on

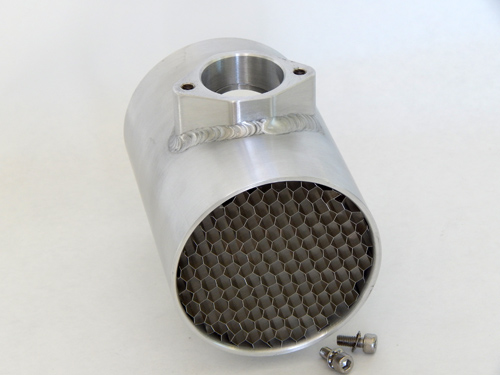

Audi/VW MK4 MK5 MAF Upgrade Housing also fits Opel, Seat, Skoda, Mercedes and more!

1-sensor-top-dimensionOriginally designed to fit the VW MK4 sensor, this housing fits 27+ sensors that share the same key dimensions – the distance between centers of the two mount holes and the diameter across the O-ring.  The MAF design accommodates the slight difference in length among these sensors.

This housing design is available in 2.75” (70mm), 3.0″ (76.2mm), 3.25″ (82.55mm), 3.5″ (88.9mm) and 4.0″ (101.6mm) diameters.  Use on your cold-air intake, turbo or supercharger project.  All diameters are also available with an air straightener or you can purchase the weld-on bung separately and weld to your pipe. Continue reading Audi/VW MK4 MK5 MAF Upgrade Housing also fits Opel, Seat, Skoda, Mercedes and more!

Posted on

MAF Housings for Subaru 2008+, Honda, Toyota, Lexus, Scion in 2.5”, 2.75”, 3.0”, 3.25”, 3.5” & 4.0” OD

Subaru 08 MAF Housing offerings
Subaru 08+ MAF Housing offerings

This Mass Air Flow Housing was originally designed with the Subaru 2008+ Denso Sensor #22680AA380/197400-5111 in mind but also fits many other cars including several makes of Honda, Toyota, Lexus and Scion since they use essentially the same MAF sensor. (MAF sensors are a mass commodity product and manufacturers frequently put their own OEM number on the same part.)

This housing design is available in 2.5” (63.5mm), 2.75” (70mm), 3.0″ (76.2mm), 3.25″ (82.55mm), 3.5″ (88.9mm) and 4.0″ (101.6mm) diameters.  Use on your cold-air intake, turbo or supercharger project.  All diameters are also available with an air straightener for just $10 more. Continue reading MAF Housings for Subaru 2008+, Honda, Toyota, Lexus, Scion in 2.5”, 2.75”, 3.0”, 3.25”, 3.5” & 4.0” OD

Posted on

Slot Style MAF Housings for Ford, Nissan, GM’s, Honda/Acura & VW MK5/MK6

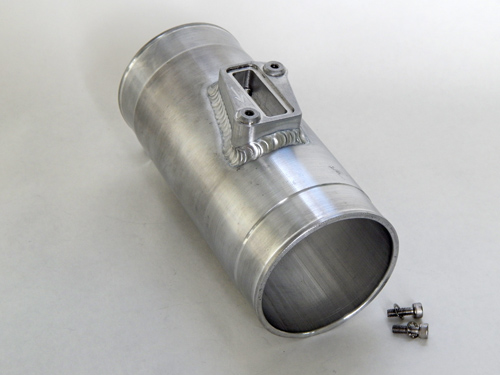

2.75
2.75″ slot style MAF with air straighter

How can one housing fit so many cars you ask?

Simple.  Mass air flow sensors are a mass commodity product and manufacturers simply put their own OEM number on the same part.  So if your car uses one of the following 8 sensors, this housing will fit your car:

  • OEM# 3L3A-12B579-BA for Ford, Lincoln, Mercury
  • OEM# 22680-7S000/AC Delco #213-3609 for Nissan & Infiniti
  • AC Delco# 213-4222/ OEM# 15865791 for Pontiac, Chevrolet, GMC, Hummer, Saturn, Buick, Cobalt, Cadillac, Saab
  • Audi # 06J906461B
  • Volkswagen #06J906461B
  • Hitachi #MAF0051 or AFH6034,
  • HuCo #135078 or interchangeable part # 7450072
  • Honda/Acura MAF Sensor OEM #AFH70M41B

Continue reading Slot Style MAF Housings for Ford, Nissan, GM’s, Honda/Acura & VW MK5/MK6

Posted on

VW MK3 Aluminum MAF Housings in 4.0”, 3.5”, 3.25”, 3.0” and 2.75” diameters

VW MK3 Family of products
VW MK3 Family of products

The VW MK3 housings were the first upgrade housings we created at the request of local VW tuners.  They are 4.625” long and are available in 4.0” (101.6mm), 3.5” (88.9mm), 3.25” (82.55mm), 3.0” (76.2mm) & 2.75” (70mm) outside diameters with or without an air straightener.  They have received excellent feedback from customers over the years.

This MAF Housing fits the following Air Flow Sensors which all share the same geometry: Bosch 0 280 217 512, Bosch 0 986 280 203 & Bosch 0 280 217 117, Mapco 42825 & compatible 021906462A & 021906462AX.  Fitments include MK3 Jetta, Fox, Golf, Cabrio, Corrado, Passat as well as Audi & Ford Galaxy. Continue reading VW MK3 Aluminum MAF Housings in 4.0”, 3.5”, 3.25”, 3.0” and 2.75” diameters

Posted on

Subaru 02-07 MAF Housings with or without air straighteners available in 2.75”, 3.0”, 3.25”, 3.5” or 4” OD (outside diameter)

Subaru owners love these MAF housings!  Check out the wide variety of options we offer for your 02-07 cold air intake, turbo, or supercharger projects.

3.0" Subaru MAF shown with stainless steel hardware.
3.0″ Subaru MAF shown with stainless steel hardware.

Features:

  • All housings are precision machined from Billet Aluminum 6061-T6 and feature precision TIG welds.
  • Stainless steel hardware for mounting is included.
  • Air straighteners are aluminum honeycomb open cell and seated in a precision machined recess on the inlet side for a secure position.
  • Housings fit Denso Sensor #22680AA310 and compatible sensor #197400-2090 which are used in Impreza WRX & STI, Legacy GT or Forester XT.  Also fits Toyota, Lexus & Scion (see below).
  • Each part is hand-buffed & hand inspected. To ensure consistent quality, 100% of our machining, welding and assembly is done locally by people we know and trust.

Continue reading Subaru 02-07 MAF Housings with or without air straighteners available in 2.75”, 3.0”, 3.25”, 3.5” or 4” OD (outside diameter)
